QUALITY BUILT INTO EVERY ENGINEERING DELIVERABLE
Accurate Engineering. Controlled Reviews. Reliable Project Outcomes.
PIPECORE ENGINEERING & DESIGN follows a structured quality-assurance process to ensure that engineering documents, calculations, drawings and digital models are technically accurate, coordinated and aligned with project requirements.
Quality is integrated throughout the engineering lifecycle—from input verification and design development to interdisciplinary review, client-comment resolution, document control and final handover.
QUALITY MANAGEMENT FRAMEWORK
FOUR LEVEL REVIEW PROCESS
Prepared By
Interdisciplinary Review
Prepared By
The assigned engineer or designer prepares the calculation, drawing, document or digital model in accordance with the approved design basis and project requirements.
Checked By
Interdisciplinary Review
Prepared By
A competent reviewer verifies:
- Technical accuracy
- Engineering calculations
- Dimensions and data
- Drawing consistency
- Applicable specifications
- Completeness of deliverables
Interdisciplinary Review
Interdisciplinary Review
Interdisciplinary Review
Related disciplines check interfaces and dependencies.
Examples:
- Process requirements against piping design
- Equipment nozzles against pipe routing
- Piping loads against structures
- Equipment loads against foundations
- Electrical and instrument interfaces
- HVAC coordination with structures and services
- Maintenance and operating access
Approved for Issue
Interdisciplinary Review
Interdisciplinary Review
The responsible discipline lead or authorised project engineer confirms that comments have been resolved and the document is ready for client submission or project use.
RELIABLE OUTPUT REQUIRE RELIABLE INPUTS
Our Expertise
Before engineering begins, PIPECORE reviews the availability, status and consistency of project inputs.
Typical Inputs Reviewed
- Scope of work
- Design basis
- Existing drawings
- PFDs and P&IDs
- Equipment datasheets
- Vendor drawings
- Plot plans and layouts
- Line lists
- Piping specifications
- Civil and structural information
- Electrical load data
- Instrumentation data
- Site-survey information
- Applicable codes and client standards
Our Experience
Missing, conflicting or unclear inputs are identified early and recorded for clarification before they affect downstream engineering.
DISCIPLINE-SPECIFIC QUALITY CHECKS
Process Engineering
Mechanical Engineering
Process Engineering
- PFD and P&ID consistency
- Process data verification
- Equipment and line-data checks
- Utility requirements
- Design conditions
- Datasheet completeness
Piping Engineering
Mechanical Engineering
Process Engineering
- Routing feasibility
- Line-number consistency
- Specification compliance
- Nozzle orientation
- Valve accessibility
- Support requirements
- Isometric accuracy
- MTO consistency
- Stress-analysis interfaces
Mechanical Engineering
Mechanical Engineering
Civil & Structural Engineering
- Equipment-data verification
- Vendor-drawing consistency
- Nozzle and utility interfaces
- Equipment accessibility
- Maintenance-clearance review
Civil & Structural Engineering
Civil & Structural Engineering
Civil & Structural Engineering
- Design loads
- Equipment and piping interfaces
- Foundation information
- Structural-member coordination
- Access-platform requirements
Electrical Engineering
Civil & Structural Engineering
Instrumentation Engineering
- Load consistency
- Equipment interfaces
- Cable-routing coordination
- Lighting and earthing requirements
- Drawing and schedule consistency
Instrumentation Engineering
Civil & Structural Engineering
Instrumentation Engineering
- Instrument index consistency
- Datasheet verification
- Hook-up accuracy
- Cable and junction-box coordination
- Loop-document consistency
HVAC Engineering
HVAC Engineering
HVAC Engineering
- Design-condition verification
- Equipment selection
- Duct-routing coordination
- Space and access review
- Utility and electrical interfaces
INTERDISCIPLINARY COORDINATION
Revision and Change Control
Typical Coordination Interfaces
Typical Coordination Interfaces
very Change Must Remain Traceable
Engineering changes may arise from:
- Client comments
- Vendor information
- Site conditions
- Design development
- Construction queries
- Scope changes
- Safety or operability reviews
PIPECORE manages changes through:
Change Identification
→ Technical Evaluation
Typical Coordination Interfaces
Typical Coordination Interfaces
Typical Coordination Interfaces
One Project. Multiple Disciplines. Coordinated Engineering.
Many engineering errors occur at the interfaces between disciplines rather than within an individual discipline. PIPECORE uses structured interdisciplinary reviews to identify and resolve these interfaces before drawings are released for construction.
Typical Coordination Interfaces
Process ↔ Piping
Process intent, line data, valves and equipment connections.
Piping ↔ Mechanical
Nozzles, equipment clearances and maintenance requirements.
Piping ↔ Civil & Structural
Pipe racks, loads, supports, foundations and penetrations.
Electrical ↔ Mechanical
Equipment loads, power requirements and access.
Instrumentation ↔ Process
Instrument locations, control requirements and hook-ups.
HVAC ↔ Building & Services
Duct routes, equipment spaces, power and structural interfaces.
3D Model Quality Review
Typical Coordination Interfaces
3D Model Quality Review
Detecting Issues Before Construction
Where 3D modelling is included, PIPECORE reviews the coordinated model for:
- Physical clashes
- Equipment accessibility
- Valve accessibility
- Operating clearance
- Maintenance clearance
- Lifting and removal routes
- Structural interfaces
- Cable-tray coordination
- HVAC interfaces
- Escape and access routes
- Constructability
- Support locations
Model Review Stages
30% Review
Overall plant arrangement and major routing.
60% Review
Detailed multidisciplinary coordination.
90% Review
Final constructability, access and completion review.
Design Checklists
Revision and Change Control
3D Model Quality Review
Consistent Reviews Through Standardised Checklists
Discipline-specific checklists help ensure that important engineering requirements are not missed during preparation, checking and approval.
Typical checklist areas include:
- Input completeness
- Calculation verification
- Drawing-format compliance
- Design-code compliance
- Equipment and line-data consistency
- Interface verification
- Dimensions and elevations
- Revision status
- Comments incorporated
- Deliverable completeness
- Constructability
- Final approval status.
Document Control
Revision and Change Control
Revision and Change Control
The Right Document. The Right Revision. The Right Recipient.
PIPECORE's document-control process can include:
- Master document register
- Document numbering
- Revision numbering
- Document status codes
- Transmittal control
- Review-status tracking
- Comment registers
- Approved-document records
- Superseded-document control
- Final document index
- Native and PDF file management
- As-built document control
Controlled documentation reduces the risk of outdated or unapproved information being used for procurement, fabrication or construction.
Revision and Change Control
Revision and Change Control
Revision and Change Control
Every Change Must Remain Traceable
Engineering changes may arise from:
- Client comments
- Vendor information
- Site conditions
- Design development
- Construction queries
- Scope changes
- Safety or operability reviews
PIPECORE manages changes through:
Change Identification
→ Technical Evaluation
→ Impact Review
→ Client Approval Where Required
→ Controlled Revision
→ Distribution
→ Final Record
The revision history should clearly identify what changed, why it changed and which document version is current.
Client Comment Resolution
Codes, Standards and Client Requirements
Codes, Standards and Client Requirements
Transparent Reviews and Documented Responses
PIPECORE can maintain a comment-resolution register recording:
- Client comment
- Responsible discipline
- Response
- Action required
- Revision reference
- Status
- Closure confirmation
This approach ensures that comments are not lost and that each review item is addressed before final issue.
Codes, Standards and Client Requirements
Codes, Standards and Client Requirements
Codes, Standards and Client Requirements
Engineering Aligned with the Applicable Project Basis
PIPECORE executes engineering according to the codes, standards, client specifications and project procedures identified in the approved design basis.
Depending on the project, these may include applicable requirements from:
- ASME
- API
- ASTM
- ANSI
- IS
- IEC
- NFPA
- OISD
- TEMA
- AWWA
- Relevant client and project specifications
Only the codes and standards applicable to the actual scope should be published or referenced in proposals.
Construction-Readiness Review
Codes, Standards and Client Requirements
Construction-Readiness Review
Engineering Designed for Practical Execution
Before final issue, deliverables should be reviewed not only for technical correctness but also for practical construction and operation.
Review Considerations
- Installation feasibility
- Fabrication requirements
- Site access
- Equipment access
- Maintenance space
- Material availability
- Tie-in feasibility
- Shutdown constraints
- Support installation
- Safety and operability
- Sequencing and constructability
As-Built Quality Control
Quality Roles and Responsibilities
Construction-Readiness Review
Final Documents That Reflect Actual Plant Conditions
For brownfield and completed projects, PIPECORE can verify that approved field changes are incorporated into final documentation.
As-Built Quality Activities
- Red-line review
- Site-change verification
- P&ID updates
- Layout updates
- Isometric revisions
- Equipment-data updates
- Electrical and instrumentation updates
- 3D-model updates
- Final revision checks
- As-built document index
- Final handover package
Quality Roles and Responsibilities
Quality Roles and Responsibilities
Quality Roles and Responsibilities
Clear Accountability at Every Review Stage
Project Manager
Responsible for project scope, schedule, communication and overall delivery.
Project Engineer
Coordinates disciplines, interfaces, inputs, reviews and technical actions.
Discipline Lead
Responsible for technical direction and discipline-level approval.
Engineer / Designer
Prepares engineering calculations, drawings, documents and models.
Checker
Performs an independent technical and documentation review.
Document Controller
Maintains numbering, revisions, transmittals and document status.
Quality Performance Monitori
Quality Roles and Responsibilities
Quality Roles and Responsibilities
Quality performance can be reviewed using indicators such as:
- Deliverables issued on schedule
- First-pass client acceptance
- Comments per deliverable
- Rework hours
- Overdue review actions
- Model clashes identified and resolved
- Site queries related to design
- Document revision accuracy
- Final handover completion
Use only verified project data when publishing performance statistics pub
INTERDISCIPLINARY COORDINATION
Continuous Improvement

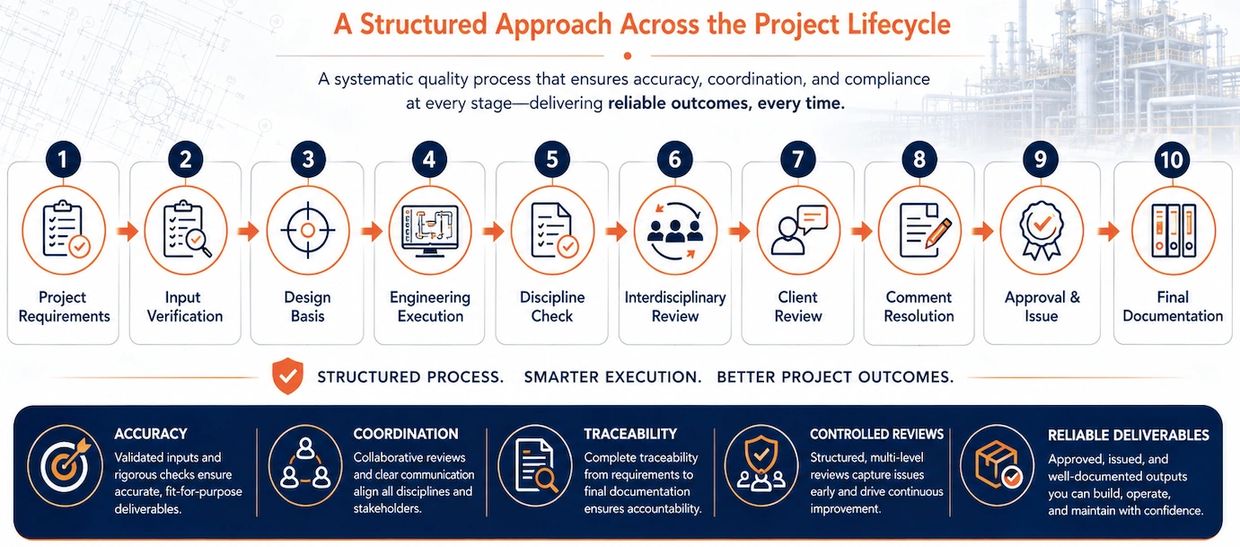

Suggested Quality Assurance Infographic
Continuous Improvement
Learning From Every Project
At project closeout, PIPECORE can review:
- Technical challenges
- Client feedback
- Design changes
- Construction issues
- Schedule performance
- Review comments
- Lessons learned
- Improvement actions
The resulting lessons can be incorporated into future:
- Checklists
- Templates
- Design practices
- Training
- Project procedures
- Engineering workflows

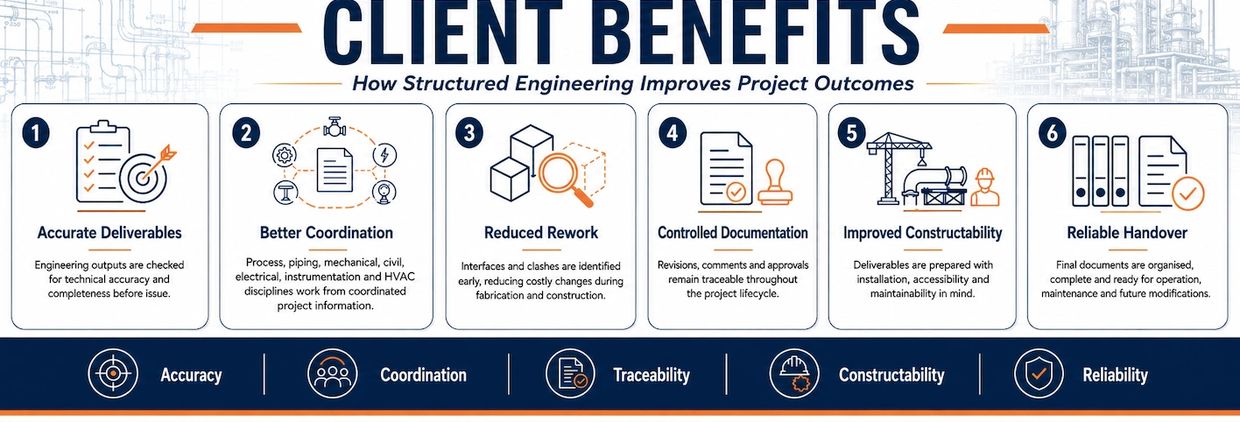

Client Benefits
Suggested Quality Assurance Infographic
Continuous Improvement
Quality Assurance That Improves Project Outcomes
Use six visual cards:
Accurate Deliverables
Engineering information is independently checked before issue.
Better Coordination
Interfaces between disciplines are identified and resolved.
Reduced Rework
Errors and clashes are addressed before fabrication and construction.
Controlled Documentation
Revisions, comments and approvals remain traceable.
Improved Constructability
Deliverables consider installation, accessibility and maintenance.
Reliable Handover
Final records are organised, complete and ready for future use.
Suggested Quality Assurance Infographic
Suggested Quality Assurance Infographic
Suggested Quality Assurance Infographic
Verified Inputs
→ Engineering Preparation
→ Technical Check
→ Interdisciplinary Review
→ Quality Approval
→ Client Review
→ Controlled Revision
→ Approved Deliverables
→ Construction Feedback
→ As-Built Handover
KEY QUALITY CONTROL
Our Mission
Missing, conflicting or unclear inputs are identified early and recorded for clarification before they affect downstream engineering.
CLIENT BENEFITS
This website uses cookies.
We use cookies to analyze website traffic and optimize your website experience. By accepting our use of cookies, your data will be aggregated with all other user data.
